Brand Name
CYGEREEN
Capacity
10 - 20Ah
Voltage
72V
Type
Lithium Battery
Model

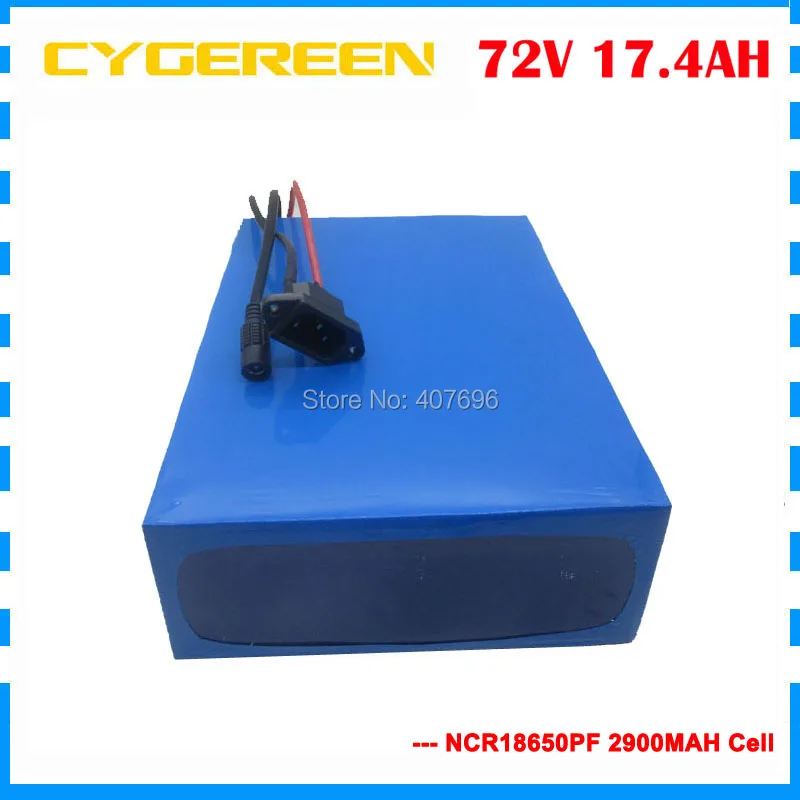

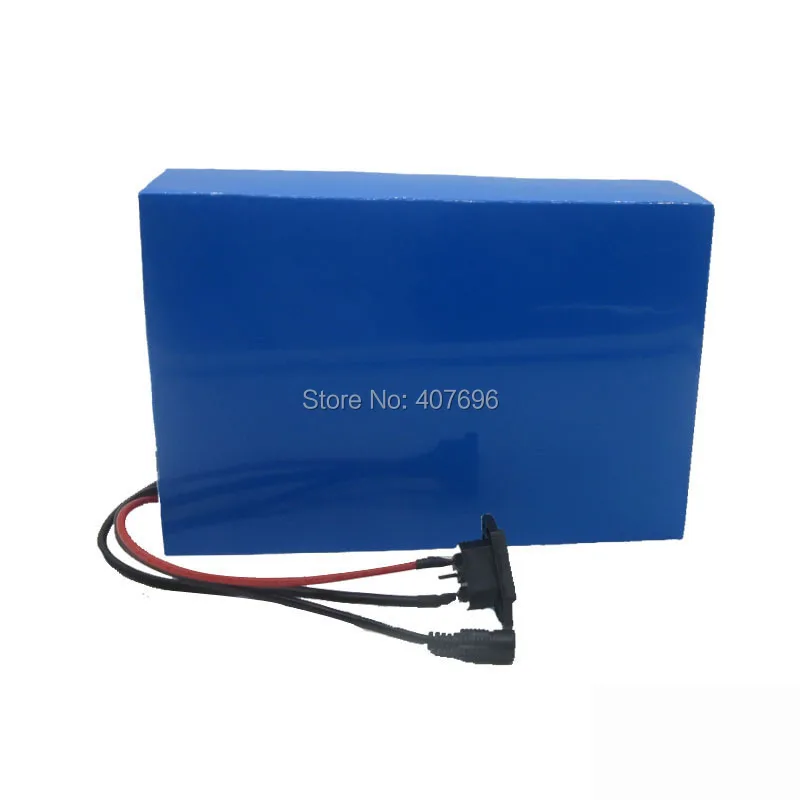

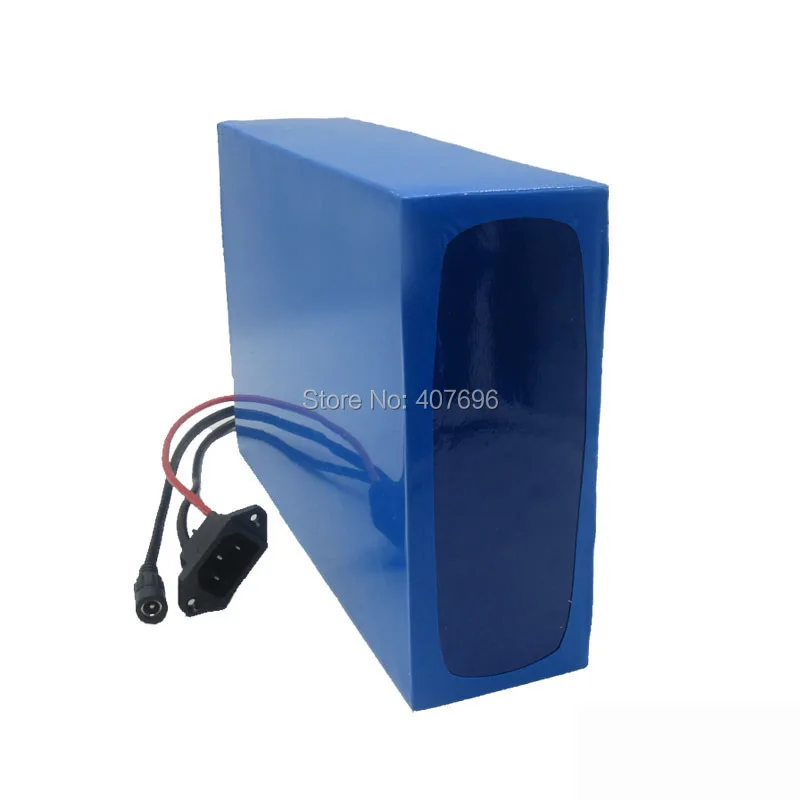

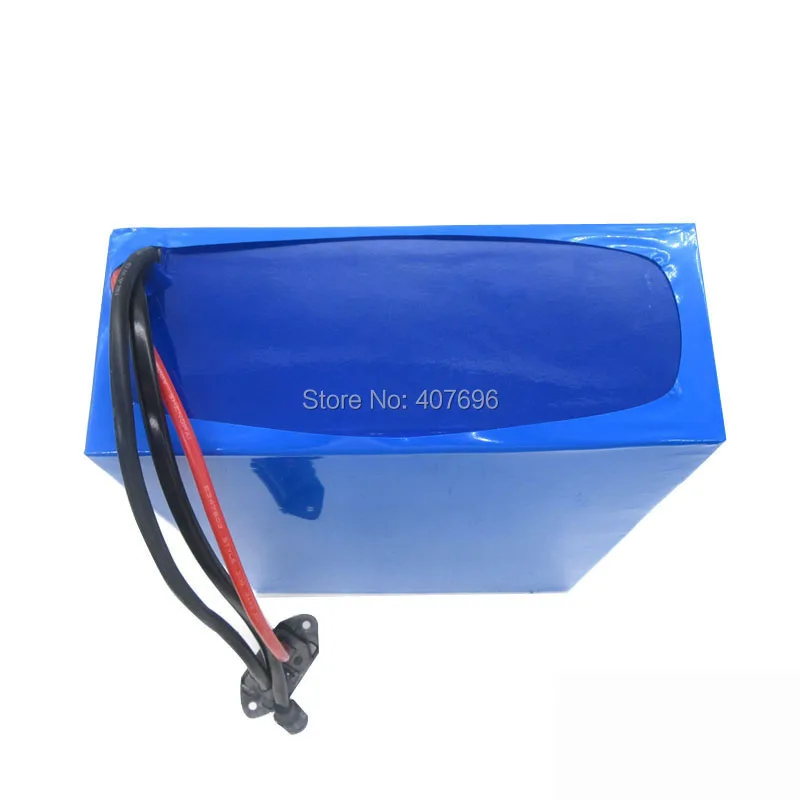

72V 17.4AH Lithium battery
Cell
Use Panasonic NCR18650PF 2900mah Cell
Capacity
17.4AH
Suit for motor
72V 500-2000W

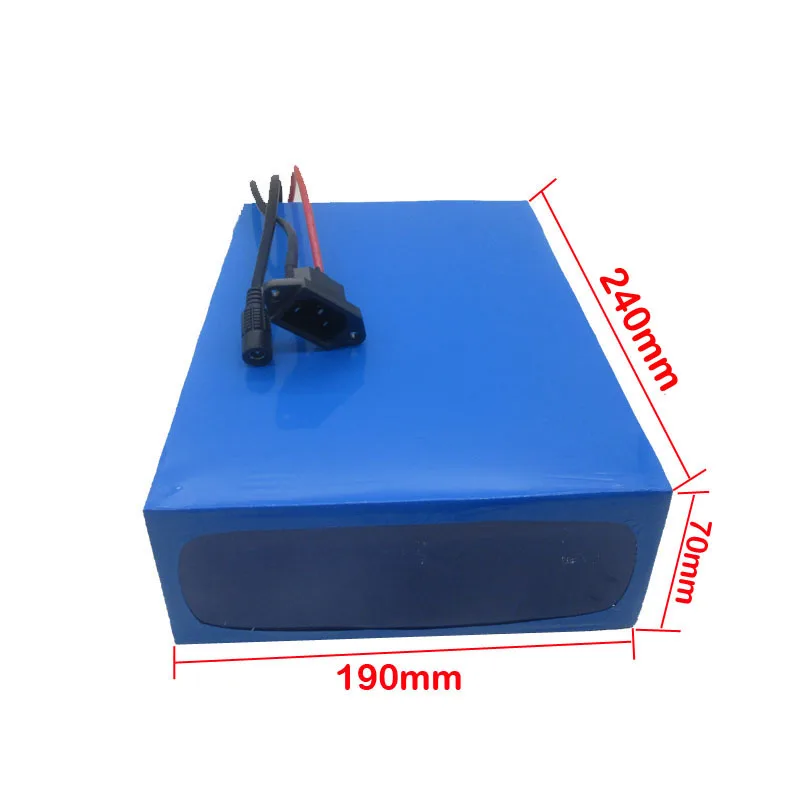

Size
240*190*70mm
Lifecycle
more than 800 cycles

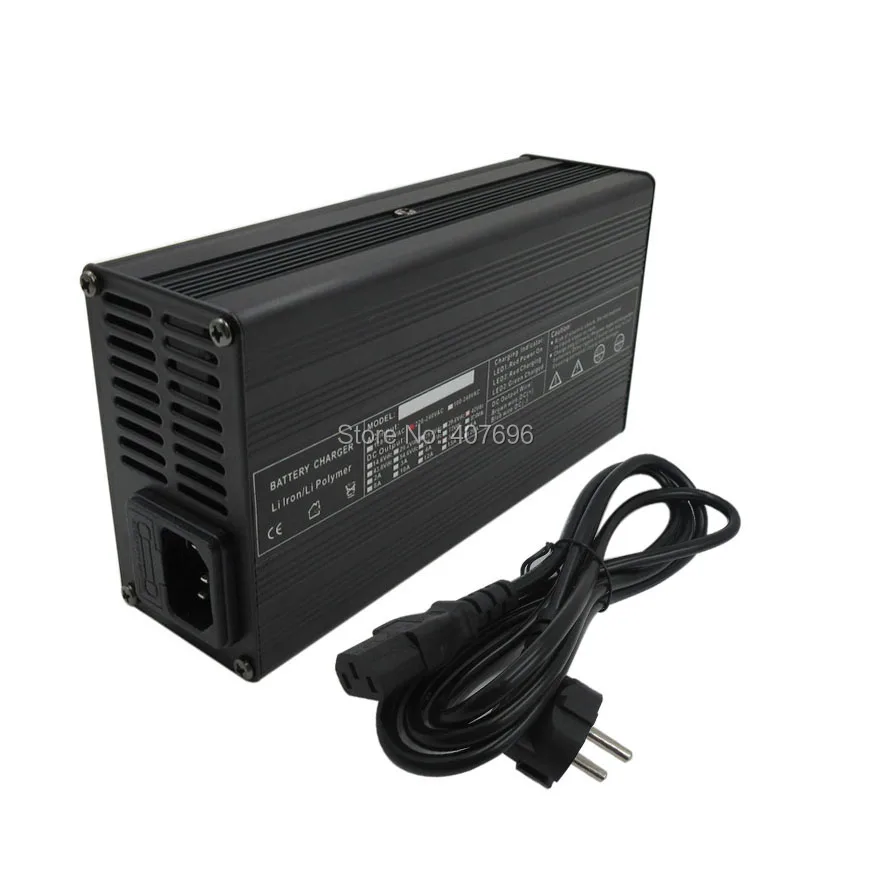

Charger
84V 2A Charger
BMS
30A
High quality 72V 17AH e-scooter battery 72V 17.4AH Electric bike lithium battery use Panasonic 2900mah cell 30A BMS with 84V 2A Charger Notice:This battery can use for 72V 500W---2000W motor Parts included: 1.72v 17.4ah Lithium Battery with pvc case,30A BMS Built in 2.84V 2ACharger(With EU/US/UK/AU AC Charger plug we can offer ) Lithium battery specification: Battery Model:72V 17Ah Nominal Capacity (AH) :17.4ah Nominal Voltage (V): 72V CellSource Resistance (mΩ) :within 38mΩ Cell Specification :Use for Panasonic NCR18650PF 2900mah 3C 10A Cell Cell Combination :6-parallel 20-series Lifecycle:more than 800 cycles Battery Size :240*190*70mm Battery Weight : About 6kgs Charge: Way of charge:CC/CV Standard charge Current:2A Maximum continuous charge Current:5A Charge Cut-off Voltage: 84V Cell Overcharge protection Voltage:4.2V Charge Temperature Range :0 - 45°C Discharge: Max Continuous Discharge Current:30A Peak Discharge Current:90A Discharge Cut-off Voltage:60+/- 1V Cell Overdisharge protection Voltage:2.5V Discharge Temperature Range: -20 - 60°C Safety Test: ShortCircuitSafetyTest Overcharge Safety Test Crush Safety Test Nofire,Noexplosion Needing Safety Test ExtrusionSafetyTest High Temperature Safety Test Applications: ·Electric Vehicles, such as E-bike, E-scooters,golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs ·Electric boats, such as trolling fishing boat ·Robots for industries and military ·Remote data transfer system ·Satellite communication station ·Un-manned aircrafts ·Power tools, such as drilling, cutting and polishing tools ·Power supplier for Training systems, such as Torpedo Trainer About Discharge port: We offer these discharge port as follows. you can choose which one you want. If you have no any require,we will send A--3PIN Port as default. Also you can customized other discharge port. Battery cell: Warnings: Do not put the battery in water, and keep the battery in a cool dry surrounding. Do not use or leave the battery near a heat temperature(in fire or a heater) Do not reverse the position and negative terminals. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not directly solder the battery and pierce the battery with a nail or other sharp objects. Must use Qualified charger,when you charging the battery must have people nearby.
